CENOS is a finite element method based computer-aided engineering desktop software for 2D and 3D physical process simulation & computational modelling of induction heating, induction hardening, brazing, annealing and tempering of steel, aluminium, copper and other parts. CENOS can also simulate conductive heating and Czochralski crystal growth process.

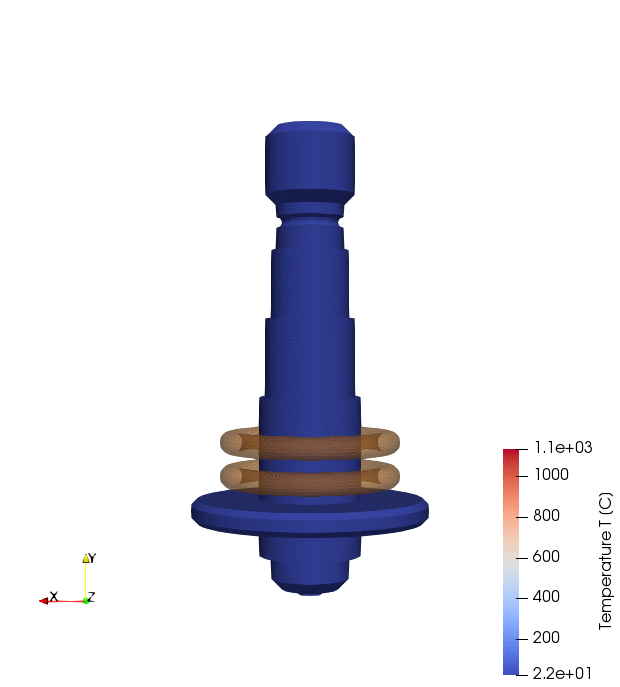

Scanning

  • Simple and complex motion

  • Controllable velocity

  • Complex workpiece hardening

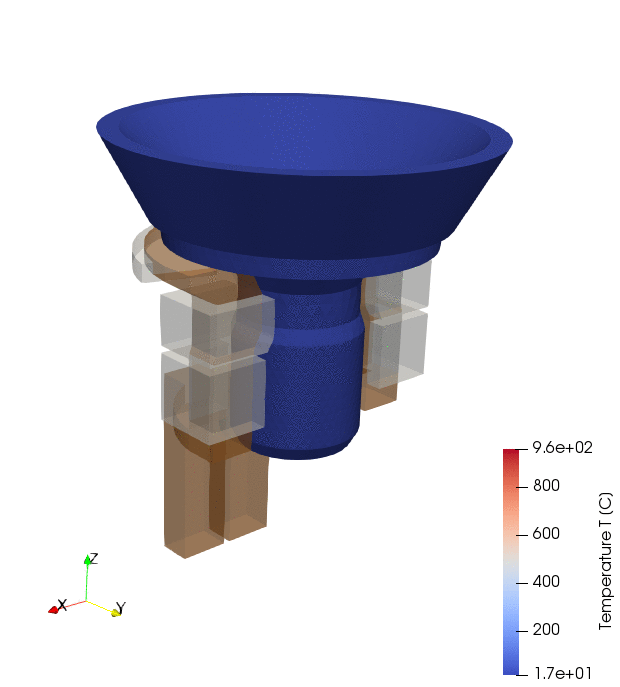

Rotation

  • Uniform heating

  • Fast calculation for axial-symmetric geometries

  • Rad/s control



HF simulation


  • Fast HF (300 kHz to multiple MHz) case calculation

  • Precise JH estimation at high frequencies

  • Current density distribution



DC link choke

  • Choke heating

  • Link structure improvements



Design optimization

  • Adjustable geometry

  • Optimal parameter solutions

  • Overnight sequence running



Power control

  • Constant and dynamic parameters

  • Current (amplitude) control

  • Voltage control

  • Frequency control



Materials

  • Carbon steels

  • Magnetic steels

  • Temperature dependent properties

  • Customizable materials

  • Extensive material library



Hardened profile

  • Hardening profile filters

  • 2D/3D hardened zone visualization



Temperature dynamics

  • Temperature at point

  • Temperature over line

  • Time dependent plots



Energy statistics

  • Generator power requirements

  • Inductor inductance
